Clutch system: repair

Make
SEAT
Model
Leon Mk1
Section
085 5-speed manual gearshift › Clutch, control › Clutch system: repair
Power transmissionClutch system: repair
Assembly
–  Pass the clutch cable through the instrument panel and insert the hood.
–  Lubricate the area where clutch cable hooks into the clutch pedal with -G 052 142 A2- grease.

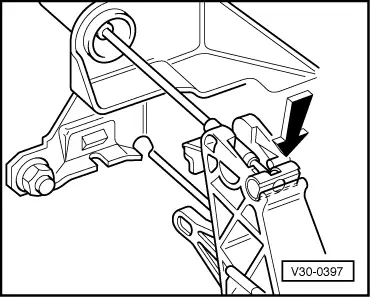

–  Hook the clutch cable into the clutch pedal -arrow-.
  V30-0397

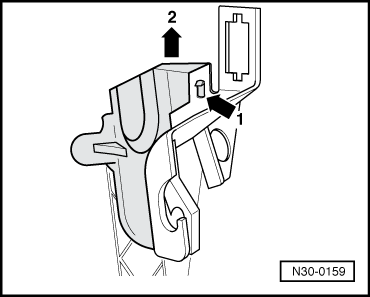

–  Place the pedal housing protector -arrows 1- and -2-.
–  Fit the hood onto the instrument panel.
–  Assemble the cable brackets and fuse-holder in their housing.
  N30-0159

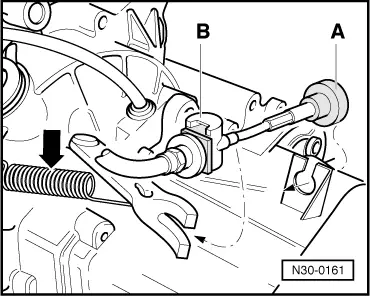

–  Connect the clutch cable to the clutch release lever as follows:
–  Insert the rubber washer -A- in the gear casing housing.
–  Connect the clutch cable -B- into the clutch release lever housing.
–  The return spring must be hooked on between the clutch release lever and the clutch casing.
  N30-0161
