Leon Mk1
|

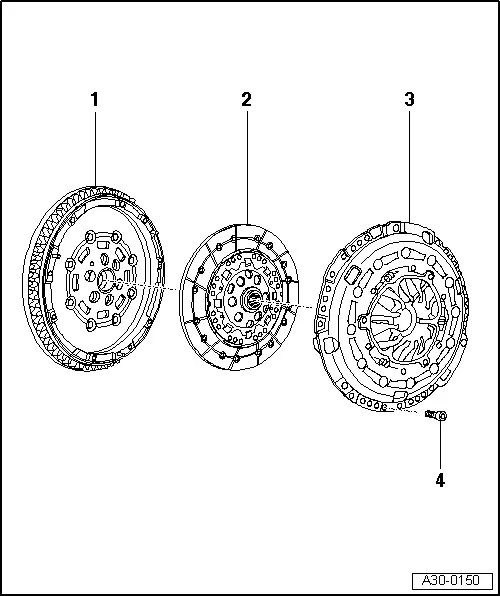

| 1 - | Flywheel |
| q | Removing and fitting → Rep. gr.13 |
| q | Ensure that centring pins are correctly seated |
| q | The clutch lining contact surface must be free of grooves, oil and grease |
| 2 - | Clutch plate |
| q | Removing and installing → Chapter>>>>>>>> |
| q | Renew only together with SAC pressure plate. |
| q | Installation position: → Fig. |
| q | Diameter of the clutch plate, according to → Spare parts catalogue |
| 3 - | SAC pressure plate |
| q | Removing and installing → Chapter>>>>>>>> |
| q | SAC means „self-adjusting clutch“ |
| q | Renew only together with clutch plate. |
| q | Checking ends of diaphragm spring → Fig. |
| q | Checking spring connection and rivets → Fig. |
| q | Checking position of adjusting mechanism with new pressure plates only → Fig. |
| 4 - | Bolt, 20 Nm |
| q | Slacken and tighten diagonally in stages |
