SEAT Leon Mk101 · Power transmission
01 · Transmission

Coupling unit

Make
SEAT
Model
Leon Mk1
Section
6-speed manual gearbox 0BB › Clutch, control › Coupling unit
Power transmissionCoupling unit

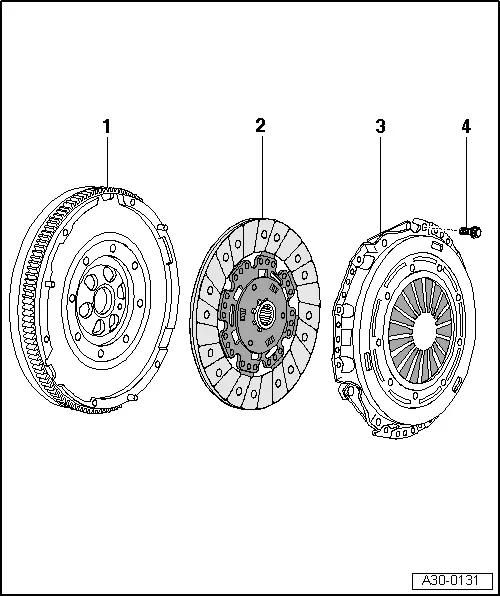

„Sachs“ clutch: Assembly overview (Vehicles with turbo diesel engine)
Coupling unit – SEAT Leon Mk1
1 - Dual-mass flywheel
q   Removing and installing → Rep. gr.13>>>>>>>>
q   Make sure that the centring pins have a tight fit.
q   Contact surface for clutch lining must be free of grooves, oil and grease
2 - Clutch plate
q   Assignment → Electronic parts catalogue „ETKA“
q   Renew only together with pressure plate
q   Removing and installing → Chapter>>>>>>>>
q   Installation position → Fig.
3 - Tightening plate
q   With adjusting mechanism
q   Assignment → Electronic parts catalogue „ETKA“
q   Renew only together with clutch plate.
q   Removing and installing → Chapter>>>>>>>>
q   Checking ends of diaphragm spring → Fig.
q   Check spring connections and riveted connections → Fig..
q   From approx. 05.11: clutch release with additional plastic washer → Fig., clutch plate is adapted → Fig..
4 - M6 bolt, 13 Nm, M7 bolt, 20 Nm
q   Assignment → Electronic parts catalogue „ETKA“
q   Loosen or tighten diagonally in small steps
