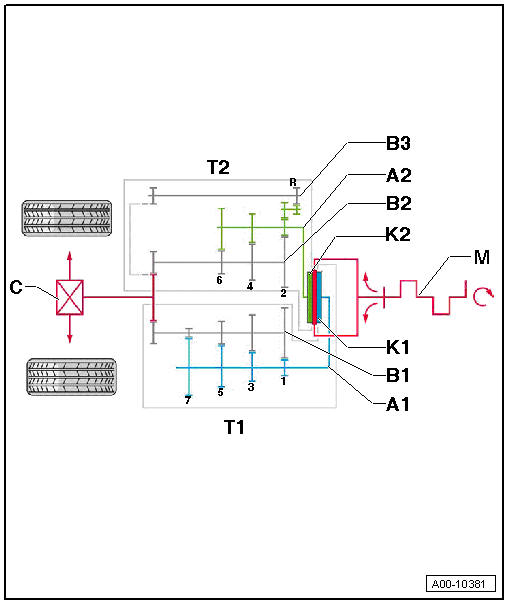

Overview - power transmission |
The 7-speed dual clutch gearbox 0AM is equipped with 5 shafts. |
A1 - | Input shaft 1 |
A2 - | Input shaft 2 |
B1 - | Output shaft 1 |
B2 - | Output shaft 2 |
B3 - | Output shaft 3 |
C - | Front final drive |
K1 - | Dual clutch 1 |
K2 - | Dual clutch 2 |
M - | Engine |
T1 - | Gear train half 1 |
q | With gears 1, 3, 5 and 7 |
T2 - | Gear train half 2 |
q | With gears 2, 4, 6 and reverse gear R |
