Leon Mk1

Front seat back, fitting
Front seat back, fitting
Installation is carried out in the reverse order. Note the following:

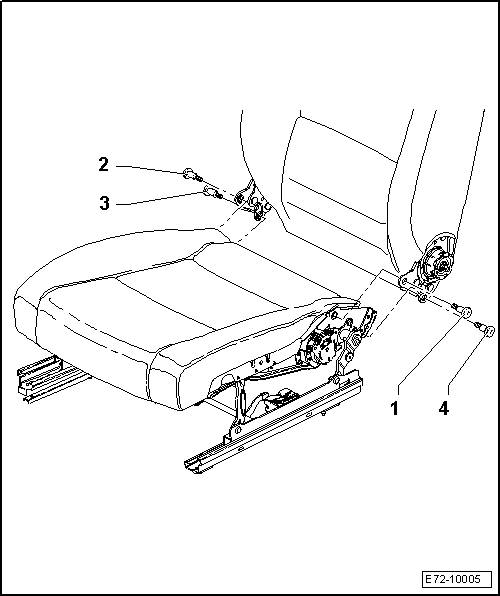

–  Fix the fastening bolts in the order given -1-, -2-, -3- and -4-.
–  Apply a tightening torque of 34.5 ± 1.5 Nm.
  Note
t  On reconnecting battery, remember to activate vehicle equipment (radio/radio navigation system, clock, electric window lifters) in line with → Instruction Manual.

t  If, after assembly, the airbag warning light -K75- lights up, the event memory must be erased using the central diagnosis -VAS 505X-. After erasing the memory, consult the event memory again .
  E69-10068
