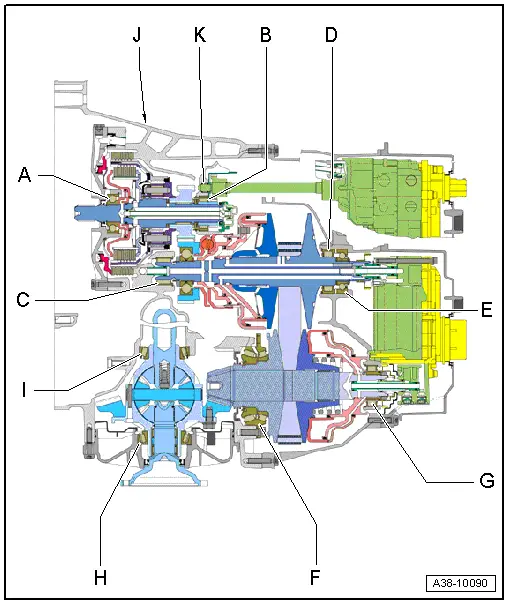

Gearbox bearings and their designation: Overview |
A - | Bearing „A“ |
q | Ball bearing for gearbox input shaft |
q | Removing and installing → Chapter>>>>>>>> |
B - | Bearing „B“ |
q | Roller bearing for input shaft |
q | Can only be renewed together with input shaft |
C - | Bearing „C“ |
q | Roller bearing for pulley set „I“ |
q | Removing and installing → Chapter>>>>>>>> |
D - | Bearing „D“ |
q | Roller bearing for pulley set „I“ |
q | Different procedures: with or without inner race |
q | Removing and installing → Chapter>>>>>>>> |
E - | Bearing „E“ |
q | Ball bearing for pulley set „I“ |
q | Removing and installing → Chapter>>>>>>>> |
F - | Bearing „F“ |
q | Tapered roller bearing for pinion shaft/pulley set „II“ |
G - | Bearing „G“ |
q | Roller bearing for pulley set „II“ |
q | Cannot be renewed individually |
H - | Bearing „H“ |
q | Bearing for differential |
q | Cannot be renewed individually |
I - | Bearing „I“ |
q | Bearing for differential |
q | Cannot be renewed individually |
J - | Bearing „J“ |
q | Ball bearing for flange shaft (right-side) |
q | Removing and installing → Chapter>>>>>>>> |
K - | Bearing „K“ |
q | Bearing for ATF pump shaft |
q | Cannot be renewed individually |
