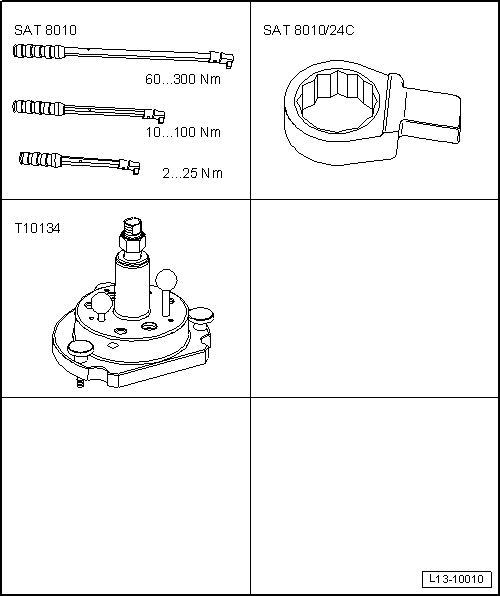

A - Fit the seal along with the sender wheel on the assembly device -T10134-

–  Tighten the hexagonal nut -B- to just before the threaded spindle attachment surface -A-.

–  Secure the assembly device -T10134- on the attachment surface -A- of the threaded spindle in a vice. –  Press down on the installation socket -C- so that it rests on the hexagonal bolt -B--arrow-. –  Screw the hexagonal onto the threaded spindle until the interior of the assembly device and the assembly socket are at the same level.

–  Unscrew the attachment clip -arrow- from the new sealing flange.   Note Do not remove the sender wheel from the sealing flange or change its position.

–  The locking hole -A- on the sender wheel -C- must coincide with the mark -B- on the sealing flange. –  Secure the sealing flange by the front on a flat, clean surface.

–  Press the sealing lip pressure ring -A- in the direction of the arrow downwards until it rests on the flat surface.

–  The upper edge of the sender wheel and the front edge of the sealing flange must coincide -arrows-.

–  Place the front of the sealing flange on the assembly device -T10134-, so that the position pin -B- fits into the hole -A- in the sender wheel.   Note Ensure that the sealing flange is flat on the assembly device.

–  When tightening the knurled bolts -A- on the assembly device -T10134-, press the sealing flange and the sealing lip pressure ring -B- so that the position pin does not come out of the hole in the sender wheel.   Note Ensure that the sender wheel remains secured in the assembly device when fitting the sealing flange.
