Leon Mk1

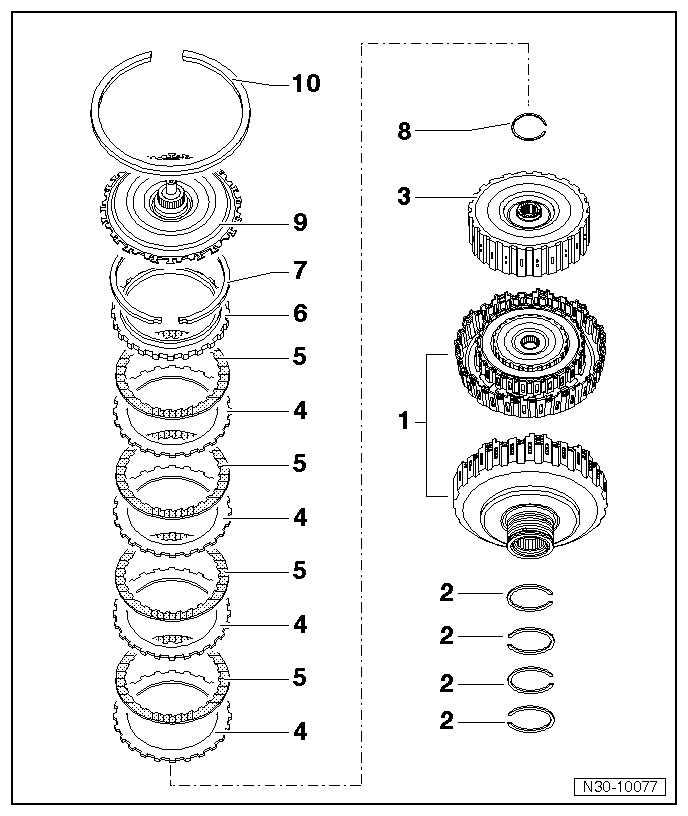

Multiple clutch: general fitting diagram |
1 - | Multiple clutch / clutch housing |
2 - | Seal |
q | 4 units |
3 - | Primary multi-disc bracket |
q | Do not remove |
4 - | Outer disc |
q | 4 units |
5 - | Inner disc |
q | 4 units |
6 - | Thrust washer |
7 - | Circlip |
q | If the circlip is removed to fit new discs then it must be replaced by a new circlip of the same thickness |
8 - | Circlip |
q | Calibrate the securing ring → Chapter |
q | Determining the correct securing ring → Item |
9 - | Clutch lock plate |
10 - | Clutch lock ring |
q | Always replace |
