Leon Mk2

  • 02K gearbox manual 5-speed
  • Technical data
  • Identifying the gearbox

Identifying the gearbox
Identifying the gearbox

Location on the gearbox
The 02K 5-speed manual gearbox is fitted to the Inca 2000 ►, combined with the 4 cylinder engine.

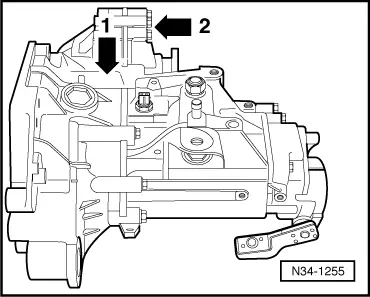

Code letters and date of manufacture -arrow 1-, type of gearbox -arrow 2-.
  N34-1255

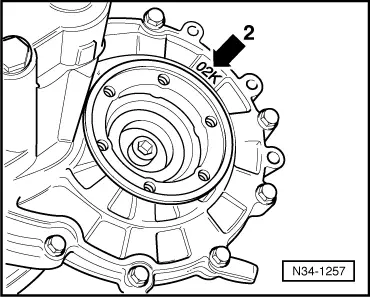

Type of gearbox:
02K 5-speed manual gearbox -arrow 2-.
  N34-1257
Code letters and date of manufacture of gearbox -arrow 1-
  N34-1256
Example:XXXXXXXX
 IIIl
 IIIl
 Code
letters		DayMonthYear
of manufacture

The additional data refers to the manufacturing process.
  Note!
The gearbox code letters are also on the customer vehicle service schedule.
