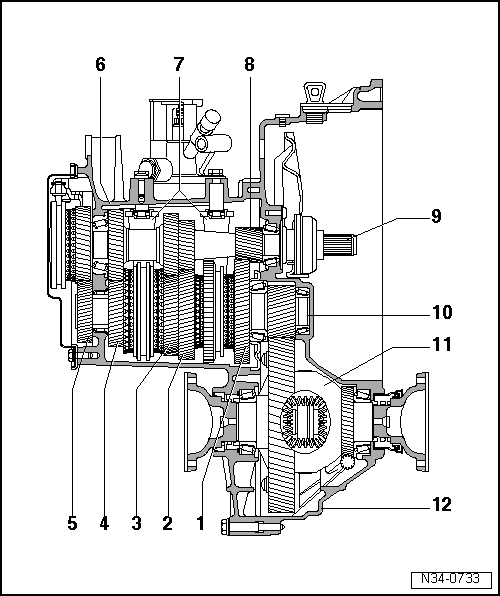

Transmission: component survey

1 -	1. Road speed

2 -	2. Road speed

3 -	3. Road speed

4 -	4. Road speed

5 -	5. Road speed

6 -

Gearbox

q	Repairing → Chapter

7 -	Gear selection mechanism

q	Connection forks

q	removing and fitting → Chapter

8 -	Gear control for 1st ª gear and reverse

9 -	Input shaft:

q	removing and fitting → Chapter

10 -	Secondary shaft

q	removing and fitting → Chapter

11 -	Differential:

q	removing and fitting → Chapter

12 -	clutch housing

q	Repairing → Chapter
