SEAT Leon Mk201 · Power transmission
01 · Transmission

Differential: Adjust

Make
SEAT
Model
Leon Mk2
Section
Final drive, differential, differential lock › Differential › Differential: Adjust
Power transmissionDifferential: Adjust

Differential: Adjust
Differential: Adjust – SEAT Leon Mk2
Special tools and workshop equipment required
t  Gearbox support assembly -VW 353-
t  Final measurement plate -VW 385/17-
t  Universal bracket for gauge -VW 387-
t  Tightening plate -VW 402-
t  Die -VW 408 A-
t  Thrust plate -3005-


Differential: Adjust – SEAT Leon Mk2
t  Tube -3259-
t  Tube -3345-
t  Torque wrench -V.A.G 1331-
t  Internal puller 46 ... 58 mm -1 - Kukko 21/7-
t  Counter-support -4 - Kukko 22/2-

It is necessary to readjust the differential when the following components are renewed:
t  Gearbox
t  clutch housing
t  Differential cage or
t  Tapered roller bearing of differential
Adjustment overview → Chapter.

–  Press tapered roller bearing outer race with shim into clutch housing → Fig..
Differential: Adjust – SEAT Leon Mk2  Note
Observe installation position of washer. Shoulder on inner diameter faces seal.
  N39-0734

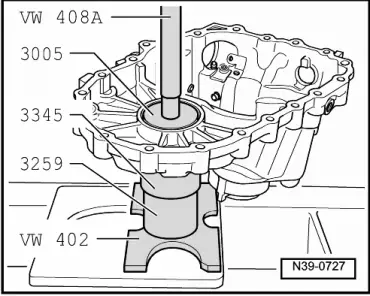

–  Press the outer ring / conical rolling bearing without shim into the gearbox housing.
–  Fit differential into clutch housing.
–  Fit gearbox housing and tighten 5 bolts to specified torque → Item → Item.
–  Press differential in direction of clutch housing while turning it 8 times.
–  Press differential in direction of gearbox housing while turning it 8 times.
  N39-0727

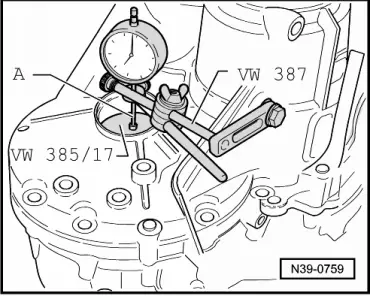

–  Attach dial gauge and set to „0“ with 1 mm preload.
A - 30 mm gauge extension
–  Move the differential up and down while reading the measurement on the gauge and noting the results (for example: 0.70 mm) is located behind the plug.
  N39-0759
