SEAT Leon Mk201 · Power transmission
01 · Transmission

7-speed dual clutch gearbox 0AM (Capacity): Technical data

Make
SEAT
Model
Leon Mk2
Section
7-speed dual clutch gearbox 0AM › Technical data › Capacity
Power transmissionCapacity
Capacity

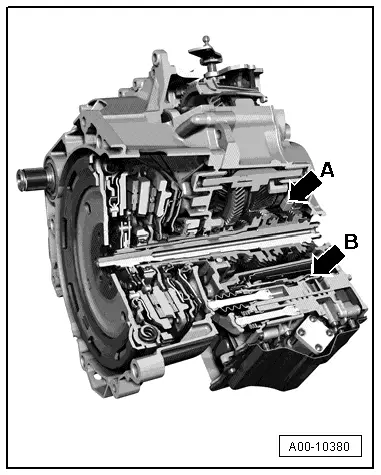

The 7-speed dual clutch gearbox has two separate fluid fillings. One section is filled with gear oil -arrow A-, the other with hydraulic fluid -arrow B-.
Dual clutch gearbox 0AM
  A00-10380
CapacityGear oil circuit -A-
Initial filling1.7 litres
Gearbox:No change required
LubricantGear oil for dual clutch gearbox 0AM
Part Number → Electronic parts catalogue

mechatronic system for automatic DSG gearbox -J743-

CapacityHydraulic oil circuit in the mechatronic unit for dual clutch gearbox -J743--B-
Initial filling1 litres
Gearbox:No change required
LubricantHydraulic oil
Original part number → Electronic parts catalogue

7-speed dual clutch gearbox 0AM (Capacity): Technical data – SEAT Leon Mk2   Caution
Risk of damage to the gearbox.
t  Only the gear oil for the 7-speed dual clutch gearbox 0AM, which is available through the replacement parts system, may be used → Electronic parts catalogue „ETKA“.
t  Other types of oil cause malfunctions and/or failure of the gearbox.
t  It is not possible to check the fill level of the hydraulic fluid part of the mechatronic unit for dual clutch gearbox -J743-. Before repairs, the breather of the mechatronic unit for dual clutch gearbox -J743- must be sealed so that no oil can escape.
t  If any oil escapes from the hydraulic fluid part of the mechatronic unit for dual clutch gearbox -J743-, it is not possible to replenish it or check the level!
t  If oil escapes from the gear oil part, it can only be rectified by changing the gear oil. It is not possible to check the fill level.
t  If the level of oil/fluid is too high or too low in either of the parts, the function of the gearbox will be impaired.


The same page in: Leon Mk1.
