SEAT Leon Mk201 · Power transmission
01 · Transmission

Identifying the gearbox (Manual gearbox 020 5-speed)

Make
SEAT
Model
Leon Mk2
Section
Manual gearbox 020 5-speed › Technical data › Identifying the gearbox
Power transmissionIdentifying the gearbox
Identifying the gearbox

Location on the gearbox
The 020 5-speed manual gearbox is fitted to the Inca 2000 ►, combined with the 4 cylinder engine.

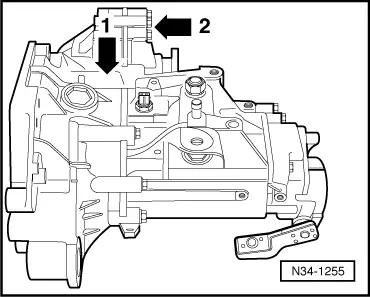

Code letters and date of manufacture -arrow 1-, type of gearbox -arrow 2-.
  N34-1255
Type of gearbox
020 5-speed manual gearbox -arrow 2-.
  V35-0730
Code letters and date of manufacture of gearbox -arrow 1-
  N34-1256
Example:XXXXXXXX
 IIIl
 IIIl
 Code lettersDayMonthYear of manufacture

The additional data refers to the manufacturing process.
Identifying the gearbox (Manual gearbox 020 5-speed) – SEAT Leon Mk2  Note!
The gearbox code letters are also on the customer vehicle service schedule.
