Removing and installing valves
Removing and installing valves
Removing
Special tools and workshop equipment required
t  Valve supporting plate -MP1-113 -
t  Valve spring assembly lever -MP1-114-
t  Washer -MP1-114/1-
t  Shop-made screw M8 x 40

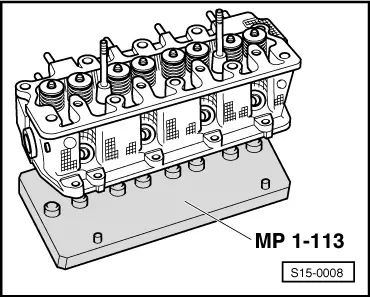

–  Fit cylinder head onto the valve supporting plate -MP1-113-.
  S15-0008

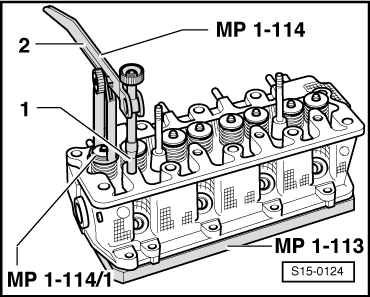

–  Install valve spring assembly lever -MP1-114- and washer -MP1-114/1- together with threaded piece-1- on the cylinder head.
–  Press down assembly lever-2-.
–  Remove valve collets.
  Note
Release collets that are tight by striking light blows with a hammer on the assembly lever.
–  Pull out valves.
  S15-0124

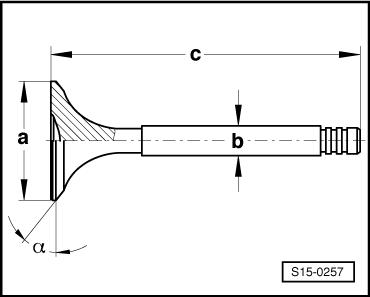

Valve dimensions
  Note
Valves must not be reworked. Only grinding in is permissible.
  S15-0257
 Inlet valveExhaust valve
Dimension1.0 ltr.1.4 ltr.1.0 ltr.1.4 ltr.
Ø amm34,034,027,030,0
Ø bmm7,07,07,07,0
cmm104,0101,0104,0101,0
α∠°45454545
