Fabia Mk1

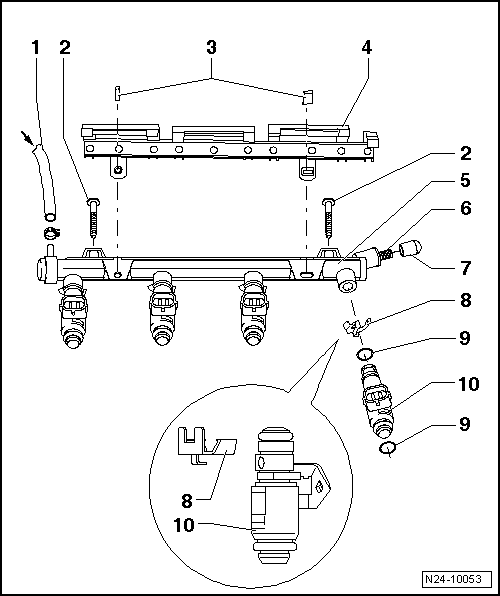

Disassembling and assembling fuel distributor with injectors |
1 - | Fuel intake hose |
q | from fuel filter |
q | secure with spring strap clamps |
q | check for firm seating |
2 - | 7 Nm |
3 - | Retaining clip |
q | pay attention to correct position |
4 - | Cable guide |
q | clipped in place on fuel distributor |
5 - | Fuel distributor |
6 - | Vent valve |
q | for fuel system |
q | Vent the fuel system → 1.4/55; 1.4/59; 1.4/74 Engine - Mechanics → Rep. Gr.20 |
7 - | Cap |
q | for vent valve |
8 - | Retaining clip |
q | check for correct seating on injector |
9 - | O-ring |
q | replace |
q | before fitting moisten lightly with clean engine oil |
10 - | Injection valves -N30 … N33- |
q | Resistance: 12.0 … 17.0 Ω (at room temperature) |
