Removing and installing the clutch control
Removing and installing the clutch control
Special tools and workshop equipment required
t  Extractor for valve-stem joint -MP 1-174-
t  Sealant THREE BOND -1324-
t  Grease MoS2

  Note
Remove and install the clutch release bearing together with the clutch release lever -3- and guide bushing for clutch release bearing -5- in order to avoid damaging the pegs on the clutch release bearing -1-.
1 - Clutch release bearing
q   Do not wash the bearing; just wipe clean
q   replace noisy bearings
q   grease the contact points on the clutch release lever with grease MoS22
q   removing and installing → Fig.
q   remove and install → Fig. together with clutch release lever → Item and guide bushing → Fig. remove and install → Item
2 - 10 Nm
q   before installing apply sealant -THREE BOND 1324-
3 - Clutch release lever
q   remove and install → Fig. → Item remove and install together with clutch release bearing and guide bushing → Item
4 - Retaining spring
q   attached to clutch release lever
5 - Guide bushing for clutch release bearing
q   removing and installing → Fig.
6 - Gasket ring for drive shaft
q   replace → Chapter
7 - Ball pin
q   grease with grease MoS2
q   when replacing the clutch housing drive in with tool -MP 1-174- up to stop
8 - Gearbox
9 - 20 Nm
10 - Slave cylinder
q   removing and installing → Chapter
q   grease tappet end of the rod with grease MoS2


Removing and installing the clutch release lever with the clutch release bearing and guide bushing for clutch release bearing

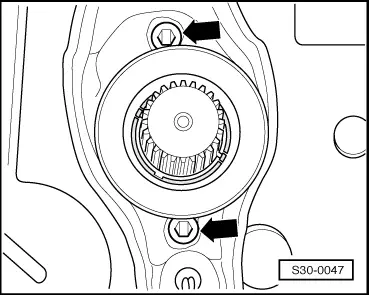

–  Release screws -arrows-.
–  Separate the clutch release lever together with the clutch release bearing and guide bushing for clutch release bearing from the ball stud.
Installation is carried out in the reverse order.
–  Before inserting the screws -arrows- grease with sealant -THREE BOND 1324-.
  S30-0047
Removing and installing the guide bushing

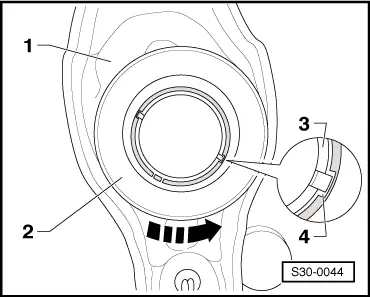

–  Rotate the guide bushing -3- opposite the clutch release bearing -2- 90° in the direction of the arrow until the catch pegs of the guide bushing fit into the slots -4- of the clutch release bearing.
–  In this position remove the guide bushing from the clutch release bearing.
The installation occurs in reverse order.
  S30-0044
Removing and installing the clutch release bearing

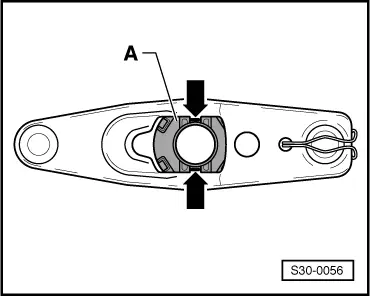

–  Press the catch pegs -arrows- together and remove the clutch release bearing -A- from the clutch release lever.
  Note
Before installing grease the contact points on the clutch release lever with grease MoS2.
–  To install press the clutch release lever into the clutch release bearing -A- until the catch pegs -arrows- lock into position.
  S30-0056
