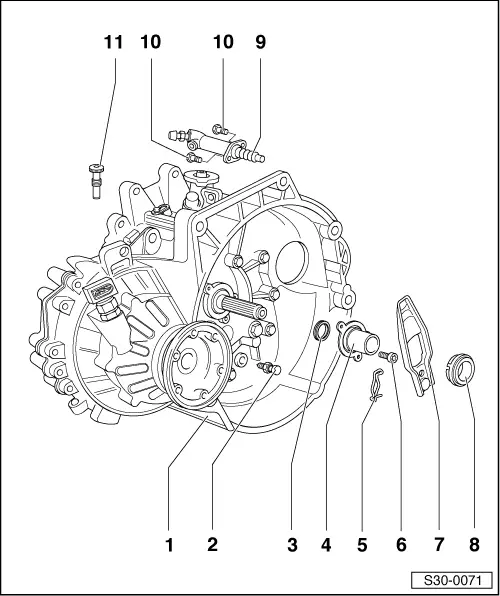

1 - | Gearbox |
2 - | Ball stud, 25 Nm |
q | Original grease must be removed from the contact point of the clutch release lever |
q | grease with grease -G 000 100- |
3 - | Gasket ring for drive shaft |
q | fitted in guide bushing Pos. 4 |
q | replace → Chapter |
4 - | Guide bushing with O-ring |
q | with gasket ring for drive shaft |
q | O-ring is fitted to guide bushing |
q | if O-ring is damaged, replace guide bushing → Chapter |
q | before removing, remove clutch release lever Pos. 7 |
q | grease in the area of the clutch release lever with grease -G 000 100- |
5 - | Retaining spring |
q | attached to clutch release lever |
6 - | 18 Nm |
7 - | Clutch release lever |
q | remove and install → Fig. together with clutch release bearing Pos. 8 |
8 - | Clutch release bearing |
q | Do not wash the bearing; just wipe clean |
q | replace noisy bearings |
q | removing and installing → Fig. |
q | grease contact points on the clutch release lever with grease -G 000 100- |
9 - | Slave cylinder |
q | removing and installing → Chapter |
10 - | 20 Nm |
11 - | Mounting bolt |
q | secures the clutch release lever when installing the gearbox → Chapter |
q | unscrew after gearbox and slave cylinder installation → Chapter |
Note
If a mounting bolt is not provided, use bolt M8 x 35. |
|
