Fabia Mk2

Check, if necessary compensate for the misalignment of the rear axle
Check, if necessary compensate for the misalignment of the rear axle
The track cannot be adjusted.
However the misalignment of the rear axle can be compensated for by moving the bearing brackets for the rear axle.

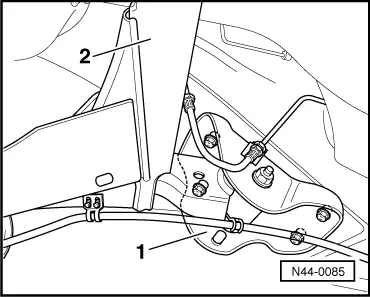

–  Loosen all screws on the mounting brackets -1- for rear axle body -2-.
–  Move the bearing bracket (if necessary both bearing brackets) of the rear axle -1- in the required direction.
If the misalignment of the rear axle still lies outside the permissible tolerance, check the axle body for damage and if necessary replace.
  N44-0085
Tightening torque:
Bearing bracket for rear axle on body
t  Use new screws!
30 Nm + 90°
