Checking the track on the front axle, adjusting if necessary
Checking the track on the front axle, adjusting if necessary
If the values lie outside the tolerance the transversal inclination must be checked and if necessary adjusted → Chapter

–  Release counternut -1 -.
–  Adjust track by turning the left or right track rod. In case of a large difference, adjust track by turning simultaneously the left and right track rod.
   Position open-end wrench on hexagon -arrow-.
Check that the bellows have not become twisted after turning the track rods!
Twisted bellows wear fast.
–  Tighten up the counternut -1- and check the track value again.
After tightening counternut -1- the set value may change slightly.
Make sure this value remains within the tolerance for the nominal value. If this is not the case repeat the track adjustment operation.

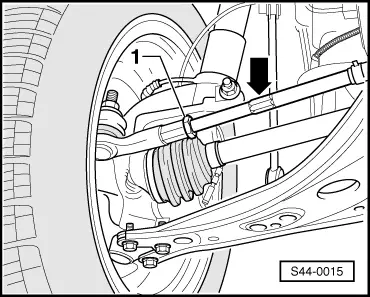

  S44-0015
Tightening torque:
Counternut to track-rod end50 Nm
