Removing and installing fuel delivery unit (Roomster)
Removing and installing fuel delivery unit (Roomster)
Special tools and workshop equipment required
t  Wrench for union nut -MP1-227 (3217)-
t  Fuel extraction device, e. g. -VAS 5190-
Conditions
l  The fuel tank must not be more than 3/4 full.
l  Ignition is switched off and ignition key is withdrawn.
Removing
  Note
t  Empty the fuel tank if necessary using the fuel suction device -VAS 5190-.
t  Observe the safety instructions before starting fitting work → Chapter.
t  Observe rules for cleanliness → Chapter.
–  Fold back the middle and rear seat and position vertically → Body Work; Rep. Gr.72.

–  Remove the cover from the fuel delivery unit.
–  Unplug the 4-pin plug -3- from the fuel delivery unit.
  WARNING
The fuel system is under pressure! Place a clean cleaning cloth around the connection point before detaching hose connections. Reduce pressure by carefully removing the hose.
  Note
Press together the securing ring on the rear side of the angular connection in order to unlock the fuel lines.

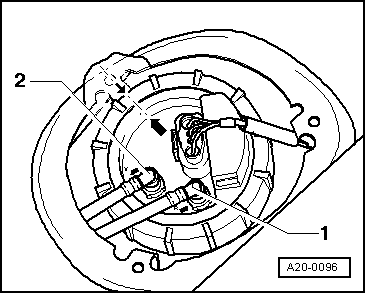

–  Remove feed line (black) -2- and return-flow line (blue) -1- from the flange of the delivery unit. To do so press the release buttons.
  A20-0096
–  Unscrew union nut with wrench -MP1-227-.
–  Pull the fuel delivery unit and the gasket ring out of the opening of the fuel tank.
  Note
The old delivery unit must be emptied before disposing of it if it should be replaced.
Install
–  The fuel delivery unit is installed in the reverse order. Pay attention to the following:
  Note
t  When installing, do not bend the float arm of the fuel gauge sender unit.
t  Only moisten from the inside the seal of the flange with fuel for fitting purposes.
t  Do not interchange feed line and return-flow line.
t  Make sure the fuel lines fit tightly.
