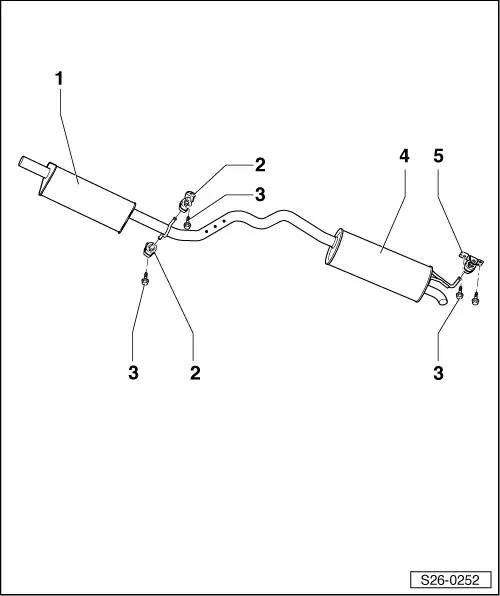

Middle and rear silencer - Summary of components
Middle and rear silencer - Summary of components
Roomster with engine identification characters BTS

1 - The middle silencer
q   for first equipment building unit with rear silencer
q   Replace individually when carrying out repairs
q   Separation point → Chapter
q   Align exhaust system free of stress → Chapter
2 - Retaining strap
q   Pay attention to the part number
q   replace if damaged
3 - 23 Nm
4 - Rear silencer
q   for first equipment building unit with middle silencer
q   Replace individually when carrying out repairs
q   Separation point → Chapter
q   Align exhaust system free of stress → Chapter
5 - Rear retaining strap
q   Pay attention to the part number
q   replace if damaged
