Fabia Mk2
Note
|

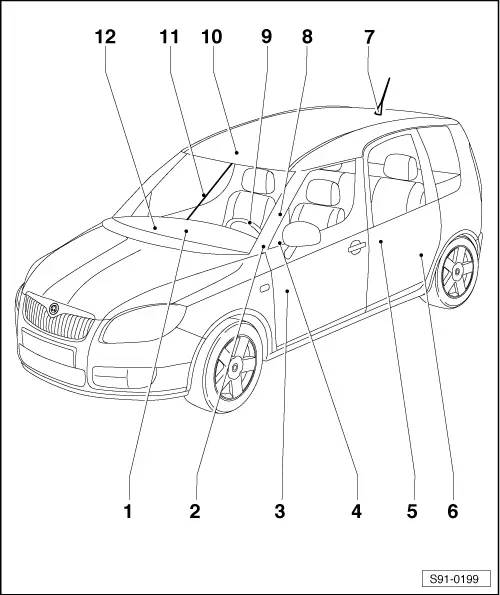

| 1 - | Radio |
| q | installed in centre console |
| q | removing and installing → Chapter |
| q | Plug connections on the radio → Chapter |
| 2 - | Power socket for external tone source AUX -R199- |
| q | is located in the centre console next to the handbrake |
| q | removing and installing → Chapter |
| 3 - | Front bass speaker |
| q | removing and installing → Chapter |
| 4 - | Multi-functional module -J527- |
| q | mounted up to MY 2010 |
| q | Description, removing and installing → Chapter |
| 5 - | Rear treble speaker |
| q | installed in top door trim panel |
| q | removing and installing → Chapter |
| 6 - | Rear bass speaker |
| q | removing and installing → Chapter |
| 7 - | Roof aerial |
| q | with aerial module |
| q | removing and installing → Chapter |
| 8 - | Front treble speaker |
| q | installed in the pillar A trim panel |
| q | removing and installing → Chapter |
| 9 - | Multi-functional steering wheel |
| q | mounted as of MY 2011 |
| q | Description, removing and installing → Chapter |
| 10 - | Aerial module -R254- |
| q | removing and installing → Chapter |
| 11 - | Windscreen aerial -R11- |
| q | Removing and installing → Body Work; Rep. gr.64 |
| 12 - | CD changer/MDI input (MEDIA-IN) |
| q | up to MY 2010 CD changer mounted |
| – | removing and installing → Chapter |
| q | as of MY 2011 MDI input mounted- multimedia socket with control unit for multimedia system -J650- |
| – | removing and installing → Chapter |
