Disassembling and assembling the output shaft (input shaft) > < Adjusting washer table

Octavia Mk1

Control measurement
Control measurement

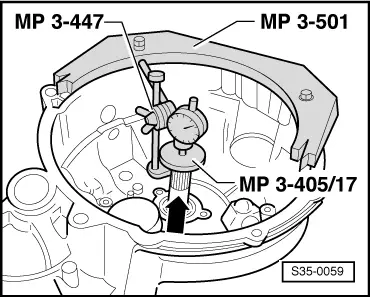

–  Insert measuring device and dial gauge.
–  Turn the drive shaft a number of times to ensure the tapered-roller bearing sets.
–  Press drive shaft in the -direction of the arrow-.
The bearing clearance must be min. 0.01 ... max. 0.09 mm.
  Note
If no bearing clearance can be measured, however the drive shaft has a tangible valve rock and can easily be turned, then the setting is also OK.
  S35-0059

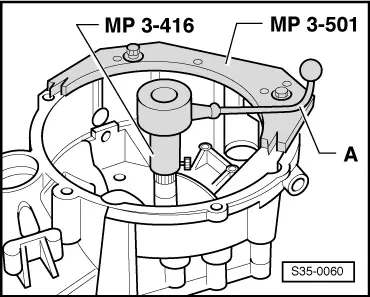

–  Friction torque max. 20 Ncm.
  S35-0060
