Octavia Mk2

Removing and installing housing
Removing and installing housing
Removing:

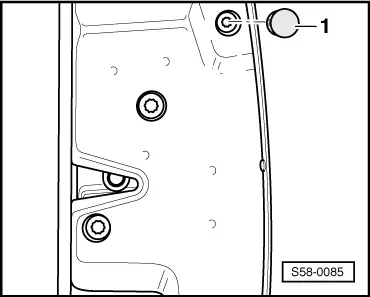

–  Release cap -1-.
  S58-0085

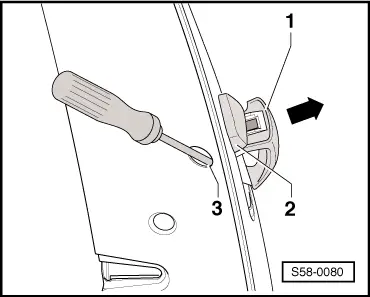

–  Pull out and hold the door handle -1- in the direction of the arrow. Loosen the screw -3- by approximately 3 turns using a screwdriver. The housing -2- is detached.
  Note
If the screw is unscrewed too far the catch may separate from the bracket and fall inside the door.
–  Pull out housing with cap -2- from bracket at right angles to the door.
Installing:
–  Installation is carried out in the reverse order.
  S58-0080
