Octavia Mk2

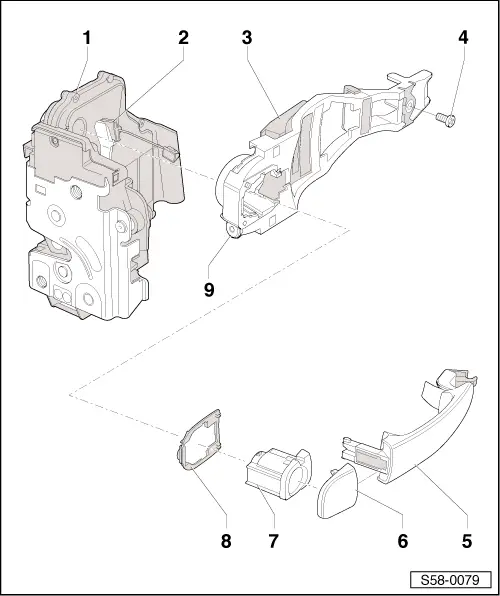

| Summary of components of door handle and door lock |
| 1 - | Door lock |
| q | Removing and installing → Chapter. |
| 2 - | Control cable |
| q | Serves to release the lock |
| 3 - | Clamp |
| Removing: |
| l | Door handle, lock cylinder housing and assembly carrier have been removed. |
| – | Remove screw (Pos. 4), push the clamp slightly back and remove from the door. |
| Installing: |
| – | Installation is carried out in the reverse order. |
| 4 - | 5 Nm |
| 5 - | Door handle |
| q | Removing and installing → Chapter. |
| 6 - | Cap |
| 7 - | Housing |
| q | Removing and installing → Chapter. |
| 8 - | Washer |
| 9 - | Screw |
| q | Releasing this screw unlocks the catch of the housing (Pos. 7) and it can then be removed from the clamp (Pos. 3). |
| q | The screw should not be installed without the lock cylinder housing in place. The catch could fall inside the door. |
