Work instruction > < Repairing the brake lines

Octavia Mk2

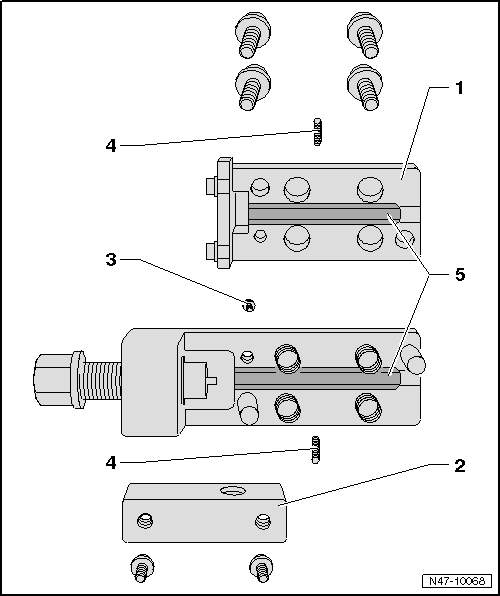

Flaring tool - summary of components

Flaring tool - summary of components
1 - Flaring tool top part
q   unscrew for changing the flaring chucks
2 - Attachment for door handle
q   must be unscrewed in order to reach the retaining screw for the top part
3 - Fixing screw
q   for flaring tool top part
4 - Center the grub screws for flaring chucks
q   and hold the flaring chucks
q   2 mm hexagon socket
5 - Flaring chucks
q   different
q   Mounting instruction → Fig.


Mounting instruction of flaring chucks:
t  VAS 6056/6 (dark) for black brake lines
t  VAS 6056/7 (bright) for green brake lines
  Note
The arrow, on the rounded side of the flaring chucks, must point to the housing edge and the straight side of the flaring chucks must be installed to the spindle, otherwise the flaring head is not properly formed.
  N47-10069
