Removing and installing engine oil cooler

Special tools and workshop equipment required

t	Catch pan for workshop crane e.g. -VAS 6208-

Removing

–	Drain the coolant from the engine cooling system → Chapter.

–	Remove the generator → Electrical System; Rep. Gr.27.

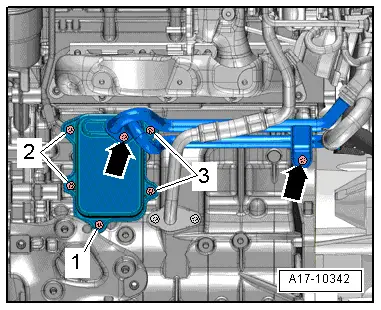

–	Unscrew screws -arrows- for coolant pipes at cylinder block and at engine oil cooler.

–	Place a catch pan for engine oil under the engine.

–	Pull out the coolant pipes towards the front out of the engine oil cooler.

–	Unscrew screws -1, 2, 3- and pull off the engine oil cooler from the cylinder block.

Note

To provide a clearer illustration, the fitting position is illustrated with the catalytic converter removed.

Install

t	Tightening torques: → Chapter

Installation is performed in the reverse order, pay attention to the following points:

Note

Replace O-rings.

–	Install generator → Electrical system; Rep. Gr.27.

–	Top up coolant → Chapter.

Note

If the engine oil cooler was replaced, the coolant must be changed.
