Removing and installing oil pump Special tools and workshop equipment required t  Counterholder -T10172- Removing –  Removing the oil pan → Chapter.

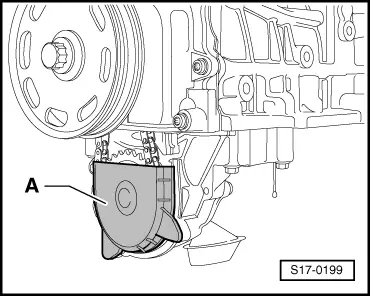

–  Unclip the cover for the chain sprocket of the oil pump -A-. –  Hold the chain sprocket of the oil pump with the counterholder - T10172-.

–  Loosen the fixing bolt of the chain sprocket.   Note Do not unscrew the bolt yet.

–  Press chain tensioner with a screwdriver in -direction of arrow-. –  Release the fixing bolt of the chain sprocket. –  Remove the chain sprocket from the oil pump and from the chain.

–  Unscrew fixing bolts of the oil pump -arrows-. –  Remove the oil pump from the cylinder block. Install

–  Press chain tensioner with a screwdriver in -direction of arrow-. –  Insert the chain sprocket into the chain and position on the shaft of the oil pump.

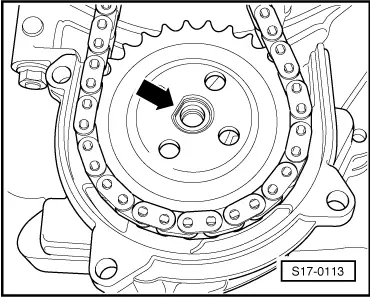

–  Pay attention to the seating of the chain sprocket on the shaft of the oil pump -arrow-. –  Screw in new fixing screw for chain sprocket.

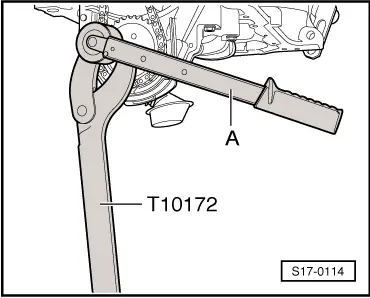

–  Counterhold the chain sprocket with the counterholder -T10172-. –  Position the torque wrench -A- as shown. –  Tighten the new fixing bolt to 20 Nm + torque a further + 90° (1/4 turn).

–  Install the cover for the chain sprocket of the oil pump -A-. –  Installing the oil pan → Chapter.
