Octavia Mk2

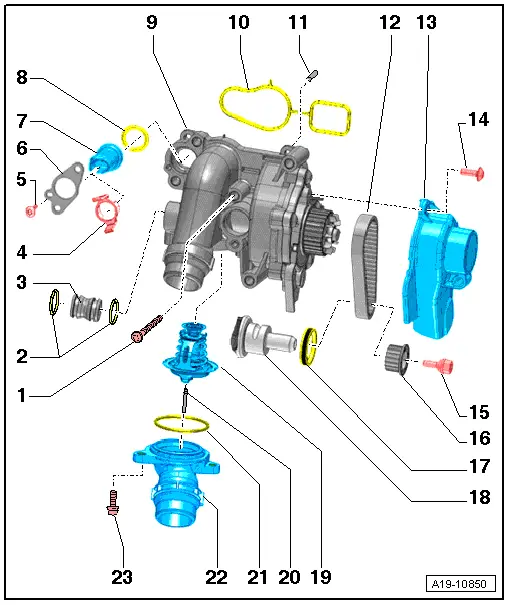

| The coolant pump and coolant regulator - List of assembly parts |
| 1 - | 9 Nm |
| 2 - | O-rings |
| q | replace |
| 3 - | Connecting support |
| 4 - | Clip |
| q | only connected version |
| q | pay attention to correct position |
| 5 - | 4 Nm |
| q | only bolted version |
| 6 - | Retaining plate |
| q | only bolted version |
| 7 - | Coolant temperature sender -G62- |
| q | replace → Chapter |
| 8 - | O-ring |
| q | replace |
| 9 - | Coolant pump |
| q | removing and installing → Chapter |
| q | on new coolant pump remove the protective cap |
| 10 - | Gasket |
| q | replace |
| 11 - | Centering pin |
| q | 2 pieces |
| 12 - | Toothed belt for coolant pump |
| q | removing and installing → Chapter |
| 13 - | Toothed belt guard |
| 14 - | 9 Nm |
| 15 - | 10 Nm + torque a further 90° (1/4 turn) |
| q | replace |
| q | Left-hand thread |
| 16 - | Drive wheel for toothed belt |
| 17 - | Radial sealing ring |
| q | replace → Chapter |
| 18 - | Balancing shaft |
| 19 - | Coolant regulator |
| q | removing and installing → Chapter |
| q | The coolant regulator can be checked via the “Targeted fault finding” under “Selected Functions/Components” → Vehicle diagnosis, testing and information system VAS 5051 |
| q | Opening start of coolant regulator: approx. 87°C |
| q | Opening end of coolant regulator: approx. 105°C |
| q | Opening stroke: approx. 8 mm |
| 20 - | Fit pin |
| 21 - | O-ring |
| q | replace |
| 22 - | Connection fittings |
| 23 - | 9 Nm |
