| Fuel tank with component parts on four-wheel drive vehicles (Octavia II) |
| 1 - | Return-flow line |
| q | from fuel cooler |
| q | clipped in place on fuel tank |
| q | check for firm seating |
| q | blue (blue marking) |
| 2 - | Feed line |
| q | to fuel filter |
| q | clipped in place on fuel tank |
| q | check for firm seating |
| q | black |
| 3 - | Sealing ring |
| q | to be inserted dry into the opening of the fuel tank |
| q | replace if damaged |
| q | only moisten from the inside the seal of the flange with fuel for installation purposes |
| 4 - | Fuel delivery unit |
| q | with sender for fuel gauge display -G- |
| q | removing and installing → Chapter |

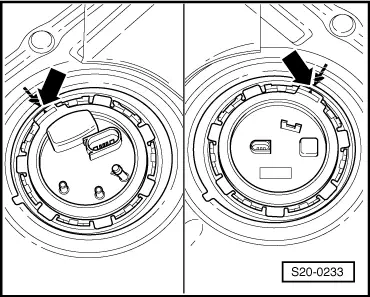

| q | note the installed position of the fuel tank → Fig. |
| q | inspecting fuel pump → Chapter |
| q | Clean strainer if dirty |
| q | Removing and installing the fuel gauge sender -G- → Chapter |
| 5 - | Lock ring, 110 Nm |
| q | use wrench -T30101 (3087)- for removing and installing |
| q | check for firm seating |
| 6 - | Fuel tank lid unit |
| q | with rubber bowl |
| q | Removing and installing → Body Work; Rep. Gr.55 |
| 7 - | Screw cap |
| 8 - | Mounting part |
| 9 - | Earth connection |
| q | check for firm seating |
| 10 - | 10 Nm |
| 11 - | Suction spray pump |
| q | connected to fuel gauge sender 2 -G169- |
| q | removing and installing → Chapter |
| 12 - | Fuel gauge sender 2 -G169- |
| q | note the installed position of the fuel tank → Fig. |
| q | removing and installing → Chapter |
| 13 - | Fuel tank |
| q | when removing support with the engine/gearbox jack, e.g. -V.A.G 1383 A - |
| q | removing and installing → Chapter |
| 14 - | Tensioning strap |
| q | Check fitting position |
| 15 - | 25 Nm |
| q | replace |
| 16 - | Heat shield |
| 17 - | Fuel cooler |
| q | removing and installing → Chapter |
| 18 - | to fuel filter |
| 19 - | 20 Nm |
