Octavia Mk2
Note
|
| Fuel filter type one and two |
| 1 - | Intake hose |
| q | from fuel tank |
| q | white or white marking |
| 2 - | 8 Nm |
| 3 - | Return-flow hose |
| q | to fuel cooler |
| q | blue or blue marking |
| 4 - | Drain plug |
| q | unscrew and drain (catch) approx. 0.1 litre fluid using the hand vacuum pump with adapter e. g. -V.A.G 1390- and ventilation reservoir -V.A.G 1390/1- |
| 5 - | Sealing ring |
| q | replace |
| 6 - | Intake hose |
| q | to the tandem pump |
| q | white marking |
| 7 - | Fuel filter - top part |
| 8 - | Retaining clip |
| q | replace if damaged |
| 9 - | Fuel temperature sender -G81- |
| 10 - | Return-flow hose |
| q | from the tandem pump |
| q | blue marking |
| q | with connection fitting for fuel temperature sender -G81- |
| 11 - | Fuel filter element |
| q | pay attention to change intervals → Octavia ll |
| q | Pay attention to the part number |
| 12 - | Fuel filter with integrated bracket - bottom part. |
| q | mounted as of 08.05 |
| q | with integrated preheating valve |
| 13 - | Fuel filter - bottom part |
| q | mounted up to 08.05 |
| q | with integrated preheating valve |
| 14 - | Support |
| q | mounted up to 08.05 |

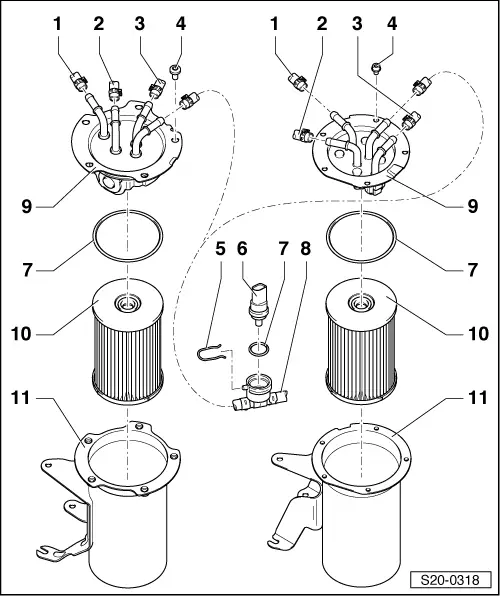

| Fuel filter type three and four |
| 1 - | Intake hose |
| q | from fuel tank |
| q | white marking |
| 2 - | Return-flow hose |
| q | to fuel cooler |
| q | blue marking |
| 3 - | Intake hose |
| q | to the tandem pump |
| q | white marking |
| 4 - | Screw |
| q | for type 3 (left part of the figure): 9 Nm |
| q | for type 4 (right part of the figure): 5 Nm |
| 5 - | Retaining clip |
| q | replace if damaged |
| 6 - | Fuel temperature sender -G81- |
| 7 - | Sealing ring |
| q | replace |
| 8 - | Return-flow hose |
| q | from the tandem pump |
| q | blue marking |
| q | with connection fitting for fuel temperature sender -G81- |
| 9 - | Fuel filter - top part |
| q | with integrated preheating valve |
| 10 - | Fuel filter element |
| q | pay attention to change intervals → Octavia ll |
| q | Pay attention to the part number |
| 11 - | Fuel filter with integrated bracket - bottom part. |
