Octavia Mk2

Removing and installing the evaporator vent temperature sender G263
Removing and installing the evaporator vent temperature sender - G263-
Removing
–  Remove the side cover on the front passenger side → Body Work → Rep. gr.68.

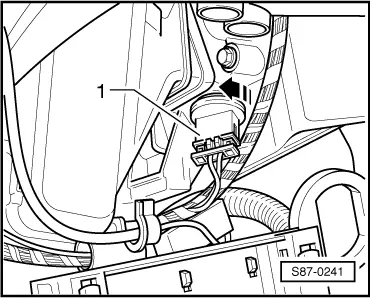

–  Disconnect plug at evaporator vent temperature sender -G263--1-.
–  Turn evaporator vent temperature sender -G263- 90° and pull out.
Install
Installation is carried out in the reverse order.
When installing, pay attention to the correct seating of the gasket ring.
  S87-0241
