Removing and installing the Footwell vent temperature senderG192
Removing and installing the Footwell vent temperature senderG192
Removing and installing the Footwell vent temperature sender -G192-
Removing
–
Remove left footwell vent
→ Chapter
.
–

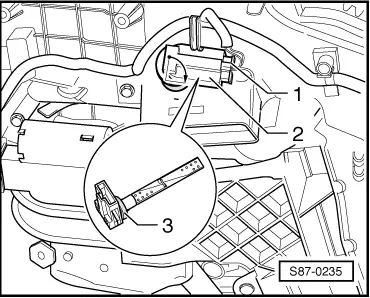

Rotate footwell vent temperature sender -G192-
-2-
by 90° and remove from housing.
–
Unplug connector
-1-
.
Install
Installation is carried out in the reverse order.
When installing, pay attention to the correct seating of the gasket ring
-3-
.
