Octavia Mk2

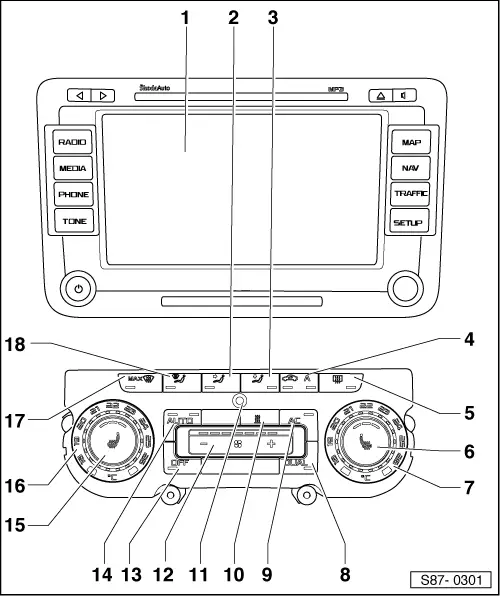

| Function of the Control and display unit for air conditioner/Climatronic -E87- with Climatronic control unit -J255- as of MY 09 (CW 45.08) |
| 1 - | Multi-function display of the radio/the navigation |
| q | Serves as a display for the information by means of the pop-up window. |
| 2 - | Push-button - Upper body air flow |
| 3 - | Push-button - Footwell air flow |
| 4 - | Push-button - Re-circulating air with air quality sensor |
| q | The Climatronic switches into the re-circulating or automatic re-circulating air operation by pressing the button, thus preventing contaminated outside air from penetrating into the passenger compartment. |
| q | If the air quality sensor recognizes a considerable increase in the concentration of pollutants while the automatic re-circulating air operation is switched on, then it is temporarily switched to air re-circulating operation. |
| 5 - | Push-button - Rear window heater. |
| 6 - | Regulator - Adjustment of temperature for the right side |
| 7 - | Display of the selected interior temperature, right |
| 8 - | Push-button - Activation and deactivation of the dual mode for the adjustment of temperature DUAL |
| q | If the warning light comes on in the button, the temperature for the left and right side can be set separately. |
| 9 - | Push-button - activation and deactivation of the cooling AC |
| q | Push button for the activation/deactivation of the AC compressor |
| 10 - | Push-button - direct activation (deactivation) of the auxiliary heating. |
| q | Only on vehicles equipped with auxiliary heating. |
| 11 - | Interior temperature sensor |
| 12 - | Regulator - Setting of the blower speed |
| 13 - | Push-button - Deactivation of the Climatronic |
| 14 - | Push-button - Automatic operation AUTO |
| q | By pressing the button AUTO the Climatronic maintains the selected interior temperature for the vehicle fully automatically. To this end the temperature of the expelled air, the blower speed and the air distribution are automatically changed. |
| q | By pressing the button AUTO again, the Climatronic switches between „HIGH“ and „LOW“ → operating instructions. |
| 15 - | Regulator - Adjustment of temperature for the left side |
| Only on vehicles equipped with driver's seat heating. |
| 16 - | Display of the selected interior temperature driver's side, left |
| 17 - | Push-button - intensive de-icing of the windscreen |
| 18 - | Push-button - Air flow to the windows |
