Inspecting ventilation

–	Remove rear bumper → Body Work → Rep. gr.63.

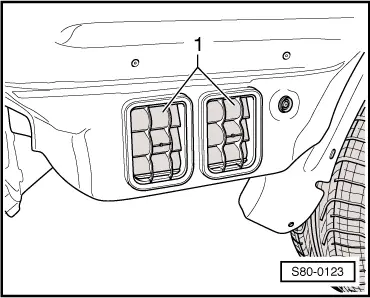

–	The sealing lips -1- in the ventilation frame must be free and close independently.

–	Check fitting position.

Note

For Octavia the two ventilation frames are located on the right vehicle side, for Octavia Combi one ventilation frame is located on the right side and one ventilation frame is located on the left vehicle side.
