Octavia Mk2

Removing clutch
Removing clutch
Special tools and workshop equipment required
t  Gearbox mount -T30109 (VW 353)-
t  Gearbox mount -T30108-
t  Assembly stand -MP9-101-
In order to remove and install the clutch, the gearbox must be tightened securely in the vertical position at the assembly stand → Chapter.
–  Remove clutch cover → Chapter.

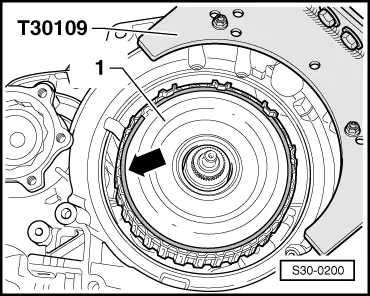

–  Remove circlip -arrow- of clutch cover -1-.
–  Take clutch cover off the clutch.
  S30-0200

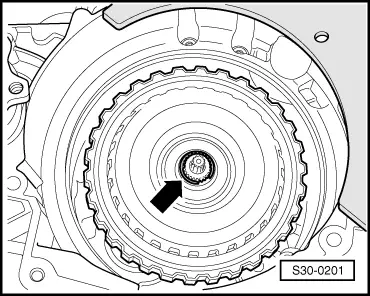

–  Removing the circlip -arrow-.
   When installing at a later stage, this circlip -arrow- must be measured again and replaced → Chapter.
  Note
t  Carefully remove the clutch. Make sure that the plate support or any other parts of the clutch do not fall out, therefore never turn the clutch!
t  If this should occur, the components can be mounted again according to the overview of the plate clutch → Chapter.
  S30-0201

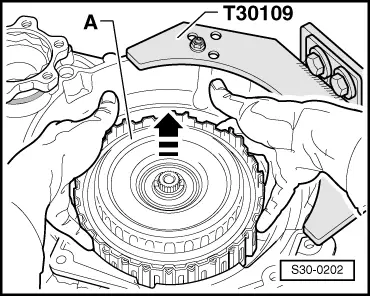

–  Remove the complete clutch -A- in -direction of arrow-.
  S30-0202

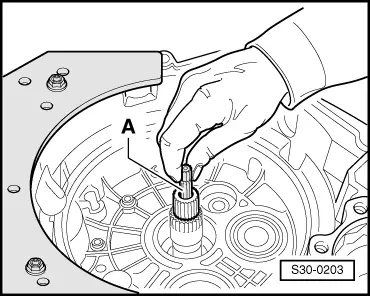

–  Pull out drive shaft -A- of gearbox oil pump.
  Note
The drive shaft of the gearbox oil pump is inserted only after the installation of the new clutch. Place down the shaft until then.
  S30-0203
