Octavia Mk2

Bleed the clutch control
Bleed the clutch control
Special tools and workshop equipment required
t  Brake filling and bleeding device, e. g. -VAS 5234-
  Note
A pre-filling of the system is not necessary!
Brake fluid specification → Chassis; Rep. gr.47.
–  Remove air filter → Engine; Rep. gr.23 or → Engine; Rep. gr.24.
–  Connect the brake filling and bleeding device.

To bleed use bleeder hose -A-.
–  Then connect ventilation hose with the drip bottle of the brake bleeding device.

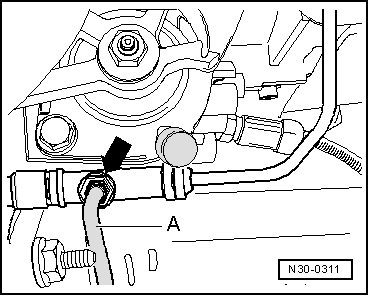

–  Fit the bleeder hose -A- onto the vent valve -arrow-.
–  Activate system with a pressure of 0.2 MPa (2 bar).
–  Open vent valve.
  Note
On certain vehicles the vent valve can be opened by hand. To do so, turn the vent valve 180° to the left as far as the stop.
–  Allow approx. 100 cm3 of brake fluid to flow out.
–  Close vent valve.
–  Activate foot controls forcefully from stop to stop between 10 and 15 times.
–  Open vent valve.
–  Allow approx. 50 cm3 more brake fluid to flow out.
–  Close vent valve.
–  After completing the bleeding procedure activate the clutch pedal repeatedly.
–  Install air filter → Engine; Rep. gr.23 or → Engine; Rep. gr.24.
  N30-0311
