Check oil level in the Haldex coupling > < Removing and installing oil filter for Haldex coupling (final drive "02D/0AV") (Octavia II)

Octavia Mk2

Check oil level in the Haldex coupling or change oil or top up with oil
Check oil level in the Haldex coupling or change oil or top up with oil
Check oil level in the Haldex coupling → Chapter
Changing oil in the Haldex coupling → Chapter
Refill oil in Haldex coupling → Chapter
  Note
t  The „Haldex coupling“ is located in the rear final drive.
t  The final drive and the „Haldex coupling“ have separate oil circulation systems.
t  The final drives „02D/0AV“ are fitted with the „Haldex coupling of the 2nd generation“.
t  The final drive „0BR“ is fitted with the „Haldex coupling of the 4th generation“.
t  The rear final drives „02D/0AV“ and „0BR“ have different „Haldex couplings“.
t  Oil for Haldex coupling, assignment → Electronic Catalogue of Original Parts.

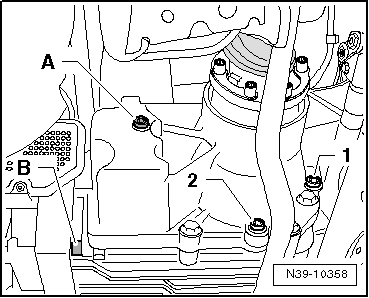

Assignment of oil filler plugs and oil drain plugs
A - Filler screw (inspection plug) for high efficiency oil for Haldex coupling
B - Oil drain plug for high efficiency oil for Haldex coupling
1 - Filler screw for gearbox oil (inspection plug)
2 - Drain plug for gearbox oil
