  Note
t  Before installing heat the inner ring of the tapered-roller bearing to 100°C.
t  Replace both tapered-roller bearings together.
t  When replacing the tapered-roller bearing of the differential gear housing, gearbox housing and clutch housing adjust the differential.

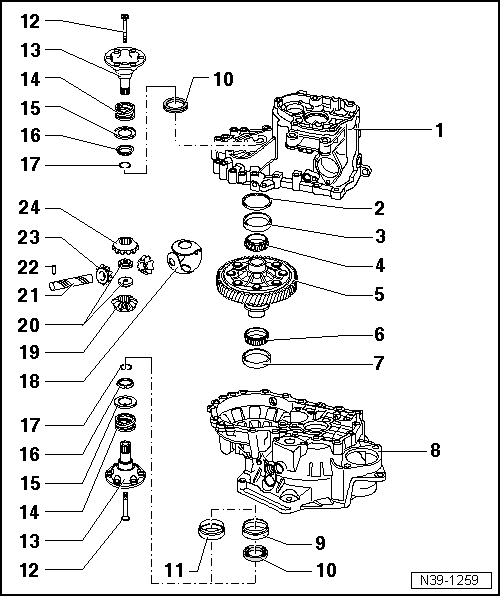

1 - Gearbox housing
2 - Adjusting washer
q   for differential gear
q   Determine thickness → Chapter
3 - Outer ring/tapered-roller bearing
q   removing → Fig.
q   installing → Fig.
4 - Inner ring/tapered-roller bearing
q   remove → Fig.
q   pressing on → Fig.
5 - Differential gear housing
q   with gear pinion for final drive
q   Differential gear housing adapted to stop disc compound
q   The hole of the tensioning sleeve is adapted to the length of the tensioning sleeve → Fig.
q   assign according to the → Electronic catalogue of original parts.
6 - Inner ring/tapered-roller bearing
q   remove → Fig.
q   pressing on → Fig.
7 - Outer ring/tapered-roller bearing
q   pressing out → Fig.
q   installing → Fig.
8 - Clutch housing
9 - Bushing (Octavia II)
q   for support of gasket ring Pos. 10
q   replace → Chapter
10 - Gasket ring (Octavia ll)
q   left - replace with installed gearbox → Chapter
q   right - replace with installed gearbox → Chapter
11 - Gasket ring and bushing as one component (Octavia II, Superb II)
q   replace gasket ring together with bushing in the event of damage → Chapter
q   Difference → Chapter
12 - 25 Nm
q   screw 20 into threaded piece Pos. 20
13 - Flange shaft
q   left - removing and installing → Chapter
q   right - remove and install in separated version (Octavia II) → Chapter
q   right - remove and install in single version (Octavia II) → Chapter
14 - Pressure spring for flange shaft
q   fitted behind flange shafts
15 - Thrust washer
q   Fitting position → Fig.
16 - Conical ring
q   with slots for thrust washer catch
q   Fitting position: Cone towards differential gear housing
17 - Circlip
q   holds the conical ring, stop disc and pressure spring in position when the flange shaft is removed
18 - Stop disc compound
q   insert with gear oil
q   on certain gearboxes the stop disc compound was provided with land → Fig.
19 - Differential bevel gear, large
q   installing → Fig.
20 - Threaded part
q   installing → Fig.
21 - Differential bevel gear shaft
q   drive out with drift
q   remove together with short tensioning sleeve → Fig.
q   remove together with long tensioning sleeve → Fig.
q   installing → Fig.
22 - Tensioning sleeve
q   to secure the axle for differential bevel gears
q   Difference between the tensioning sleeves → Fig.
q   short tensioning sleeve; removing and installing → Fig.
q   long tensioning sleeve; removing → Fig.
q   long tensioning sleeve; installing → Fig.
23 - Differential bevel gear, small
q   installing → Fig.
24 - Differential bevel gear, large
q   installing → Fig.
