Checking the plug connections at the gearshift mechanism
Checking the plug connections at the gearshift mechanism
l  Before repairing or checking the plug connections, try to determine the origin of the damage as accurately as possible using the → Vehicle diagnostic tester in the functions „Targeted fault finding“, „Vehicle self-diagnosis“ and „Measuring method“.
Before checking the plug connections, all control units in the vehicle should be checked for fault entries and if necessary the faults must be rectified.
Plug connections at the gearshift mechanism

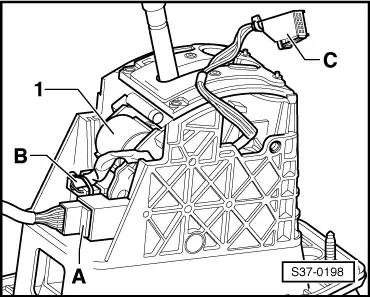

For vehicles Octavia II, Rapid, Superb II and vehicles Fabia II and Roomster as of 11.11
A - 10-pin plug connection for connection lines from the gearshift mechanism to the automatic gearbox control unit -J217-
B - 4-pin plug connection to selector lever lock solenoid -N110- and selector lever switch blocked -F319- in P
C - 10-pin plug connection to cover for gearshift mechanism
–  Check operation of the ignition key anti-removal lock:
t  Octavia II → Chapter.
t  Rapid, Superb II and vehicles Fabia II and Roomster as of 11.11 → Chapter.
  S37-0198

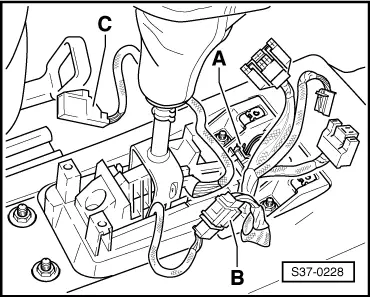

For vehicles Fabia II and Roomster up to 10.11
A - 2-pin plug connection to selector lever lock solenoid -N110-
B - 10-pin plug connection for connection lines from the gearshift mechanism to the automatic gearbox control unit -J217-
C - 10-pin plug connection to cover for gearshift mechanism
