Removing and installing selector lever lock solenoid -N110- For vehicles Octavia II, Rapid, Superb II and vehicles Fabia II and Roomster as of 11.11 The selector lever lock solenoid is integrated firmly in the gearshift mechanism and cannot be replaced separately. To replace, the gearshift mechanism must be replaced: t  Octavia II, Superb II → Chapter. t  Rapid and vehicles Fabia II and Roomster as of 11.11 → Chapter. For vehicles Fabia II and Roomster up to 10.11 Removing   WARNING Observe measures when disconnecting and connecting the battery → Electrical System; Rep. gr.27. –  Disconnect the battery-earth strap with the ignition off → Electrical System; Rep. gr.27. –  Removing the cover for the shift mechanism → Chapter. –  Remove the centre console → Body Work; Rep. gr.68.

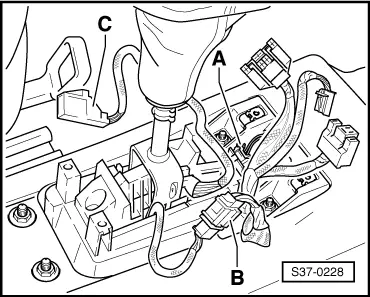

–  Pull out connector -A-.

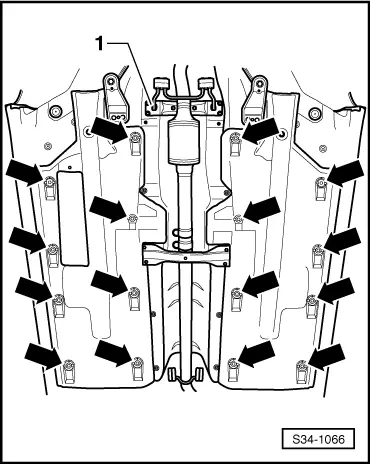

–  Remove pre-exhaust pipe with bracket -1- → Engine; Rep. gr.26. –  Remove underbody cover on right and left -arrows-.

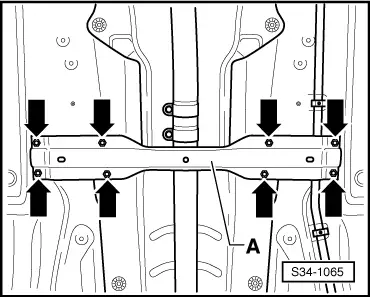

–  Remove tunnel bridge -arrows-. –  Unhook rear silencer in such a way that it does not come in contact with the rear axle.

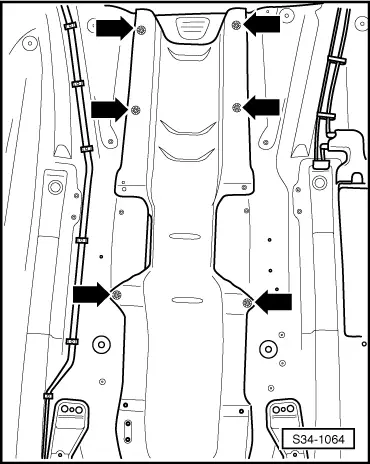

–  Remove heat shield -arrows-.

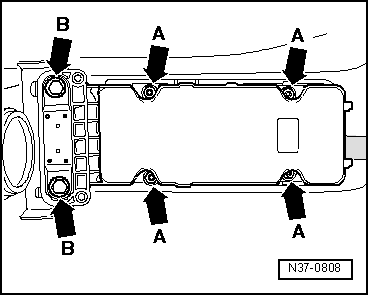

–  Unscrew cover for bottom shift mechanism -arrows-. –  Carefully slide the cover with boot over the selector lever control cable forward. At the same time do not damage the boot.

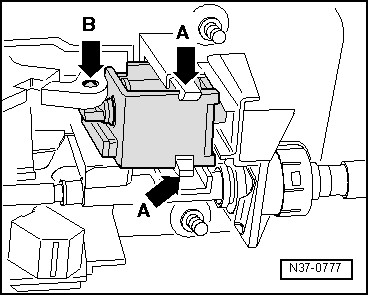

–  Press off locking tabs -arrows A-. –  Slightly pull the solenoid out of the attachment. –  Pull solenoid control cable out of the catch -arrow B-. Install

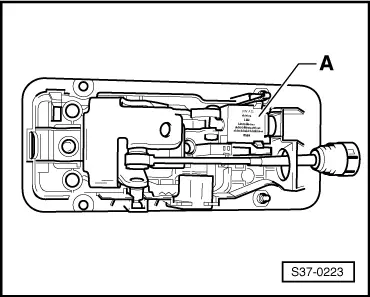

–  Insert selector lever lock solenoid -N110--A- into the gearshift mechanism. –  Insert solenoid control cable into the catch -arrow B-. The locking tabs -A- must click into place audibly.

–  Position cover for bottom shift mechanism -arrows- and screw on.

–  Remove heat shield -arrows-.

–  Install pre-exhaust pipe with bracket -1- → Engine; Rep. gr.26. –  Install underbody cover on right and left -arrows-.

–  Install tunnel bridge -arrows-.

–  Mount the plug connection -A-. –  Install the centre console → Body Work; Rep. gr.68. –  Installing the cover for the shift mechanism → Chapter.   WARNING Observe measures when disconnecting and connecting the battery → Electrical System; Rep. gr.27. –  Connect earth strap of battery → Electrical System; Rep. gr.27.
