Installation is performed in the reverse order, pay attention to the following points: |
Note t

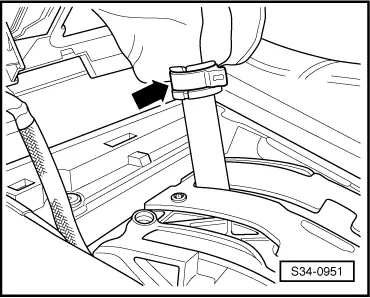

| The lock button must be fully pulled out for installing the selector lever grip. Then the grip must be secured using a cable strap -arrow- or with the factory-delivered assembly aid for the new grip. |
t
| If the lock button was not inadvertently secured, it must not be pulled out of the selector lever grip using mechanical auxiliary tools. The lock button can be pressed out if necessary by positioning the compressed air pistol on the underside of the grip. |
–
| Fit the selector lever grip completely onto the selector lever with a new warm-type clamp - the lock button points to the driver. |
l
| During this procedure, the grip must latch in the annular groove on the selector lever. |
–
| Remove the cable strap or the assembly aid. After the removal, the lock button actuator grips into the vertical groove of the selector lever, if necessary press the lock button into the selector lever grip. |
Tighten warm-type clamp using hose binding claw. |
|
|
|
