Octavia Mk2
Note
|

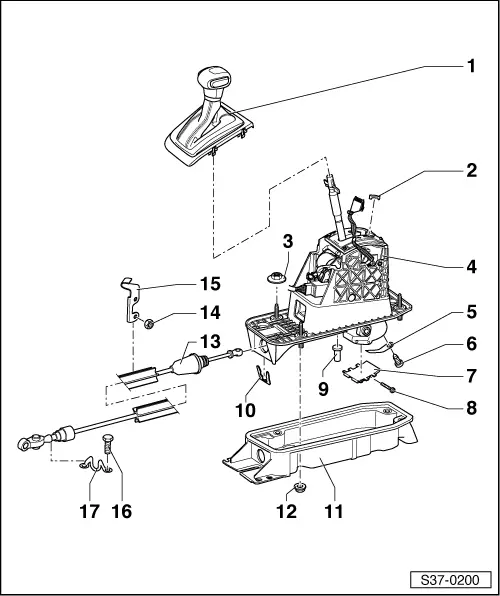

| 1 - | Cover for shift mechanism |
| q | removing and installing → Chapter |
| q | for the emergency release only the cover needs to be unclipped → Chapter |
| 2 - | Stop buffer for selector lever |
| q | clipped into the gearshift mechanism |
| 3 - | 10 Nm |
| q | 4 pieces |
| q | for attaching the gearshift mechanism to body |
| 4 - | Gearshift mechanism (bearing pot) |
| q | removing and installing → Chapter |
| q | with firmly integrated circuit board for gearshift mechanism, do not touch |
| q | with firmly integrated Tiptronic switch -F189- and Selector lever lock solenoid -N110-, these components can be checked in the „Targeted fault finding“ → Vehicle diagnostic tester |
| q | replace gearshift mechansim if Tiptronic switch -F189- defective → Chapter |
| q | replace gearshift mechanism if selector lever lock solenoid -N110- is defective → Chapter |
| 5 - | Latch spring |
| 6 - | 3.5 Nm |
| 7 - | Catch plate |
| 8 - | 3.5 Nm |
| q | 4 pieces |
| q | for attaching the catch plate to the gearshift mechanism |
| 9 - | Bearing bolt |
| q | for selector lever control cable on gearshift mechanism |
| 10 - | Lock washer |
| q | for selector lever control cable on bearing pot |
| q | replace |
| 11 - | Cover for gearshift mechanism |
| q | with affixed gasket |
| 12 - | 9 Nm |
| q | self-locking |
| q | for attaching the cover to the gearshift mechanism |
| q | 4 pieces |
| q | replace → Electronic Catalogue of Original Parts |
| 13 - | Selector lever control cable |
| q | do not bend or buckle |
| q | if the boot is damaged the selector lever control cable must be replaced |
| q | testing and adjusting → Chapter |
| q | removing and installing → Chapter |
| q | Do not grease drawbar eye and ball socket. |
| 14 - | 13 Nm |
| q | for holder Pos. 15 at gearbox |
| 15 - | Support |
| q | for selector lever control cable |
| 16 - | 23 Nm |
| q | for cable support to gearbox |
| q | 2 pieces |
| 17 - | Cable support |
| q | for selector lever control cable on gearbox |
