Octavia Mk2

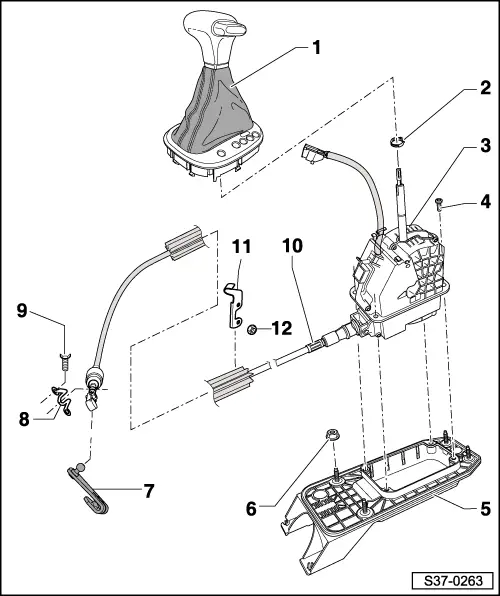

| Summary of components - Shift mechanism Octavia II and Superb II as of 11.09 („new shifting“) |
Note| The selector lever control cable was replaced as a separate component part up to production date 10.09 („old shifting“) → Chapter. As of production date 11.09 („new shifting“) this is no longer possible, the selector lever control cable Pos. 10 must not be removed (separated) from the shift mechanism Pos. 3, it must be replaced together as one component part → Electronic Catalogue of Original Parts. |
| 1 - | Cover with handle |
| q | Removing and installing cover → Chapter |
| q | for the emergency release only the cover needs to be unclipped → Chapter |
| q | the symbol insert and the circuit board with the lamp for selector lever scale illumination -L101- are integrated in the cover |
Note| The illustration shows the part for vehicles Octavia ll, the part for vehicles Superb ll has a different shape → Electronic Catalogue of Original Parts. |
| 2 - | Open warm-type clamp |
| q | always replace → Electronic Catalogue of Original Parts |
| q | tighten using hose binding claw -V.A.G 1275- |
| 3 - | Selector lever and shift mechanism |
| q | with selector lever lock solenoid -N110- |
| q | Emergency release → Chapter |
| q | removing and installing → Chapter |
| q | Inspecting and adjusting the selector lever control cable → Chapter |

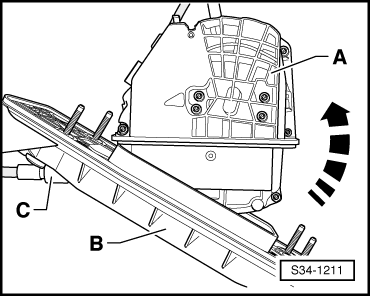

| q | Remove the shift mechanism from the shift housing → Fig. |
| 4 - | Screw |
| 5 - | Shift housing with gasket |
| q | Remove shift housing → Fig. |
| 6 - | Nut, 25 Nm |
| q | 4 pieces |
| 7 - | Gearshift lever |
| 8 - | Cable support |
| q | for selector lever control cable |
| 9 - | 23 Nm |
| q | for cable support to gearbox |
| q | 2 pieces |
| 10 - | Selector lever control cable |
| q | when installing in the vehicle, clamp on the gearbox side with the fixing part to the heat shield of the exhaust system |
Note| The selector lever control cable must not be removed from the shift mechanism Pos. 3, it must be replaced together as one component part → Electronic Catalogue of Original Parts. |
| q | Do not grease selector lever control cable |
| q | remove from the shift housing and install → Fig. |
| q | testing and adjusting → Chapter |
| 11 - | Support |
| q | for selector lever control cable |
| 12 - | 13 Nm |
| q | for holder Pos. 11 at gearbox |
|
|
