Tightening torques

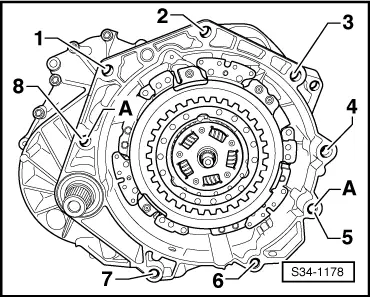

Attachment of gearbox to 1.6 ltr./77 kW TDI CR+ and 1.8 ltr./112; 118 kW TFSI engines on vehicles Octavia II and Superb II

Pos.	Screw	Nm
1, 3	M12 x 55	80
21)	M12 x 155	80
4	M12 x 65	80
5, 6, 7	M10 x 50	40
82)	M12 x 65	80
A	Dowel sleeves

1) Additional starter to gearbox with engine

2) Screwed in from the engine side

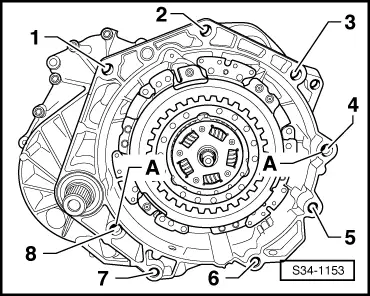

Attachment of gearbox to 1.4 ltr./90 kW TSI engine on vehicles Octavia II

Pos.	Screw	Nm
1,2	M12 x 55	80
3	M12 x 50	80
4,5	M12 x 65	80
61)	M10 x 25	40
71)	M10 x 50	40
81)	M12 x 55	80
A	Dowel sleeves

1) Screwed in from the engine side

Attachment of gearbox to 1.2 ltr./77 kW TSI engine on vehicles Octavia II and Yeti

Pos.	Screw	Nm
1	M12 x 55	80
2	M12 x 65	80
3	M12 x 50	80
4,5	M12 x 65	80
61)	M10 x 25	40
71)	M10 x 50	40
81)	M12 x 55	80
A	Dowel sleeves

1) Screwed in from the engine side

Gearbox console to gearbox and gearbox mount to gearbox console

t  Screw -1- tightening torque 40 Nm + torque a further 90° (1/4 turn) t  Screw -2- tightening torque 60 Nm + torque a further 90° (1/4 turn) Replace screws -1- and -2- → Electronic Catalogue of Original Parts.
