Octavia Mk2

Install
Install
Installation is performed in the reverse order, pay attention to the following points:
–  Grease tappet head with grease for plug serration of clutch disc -G 000 100 -.

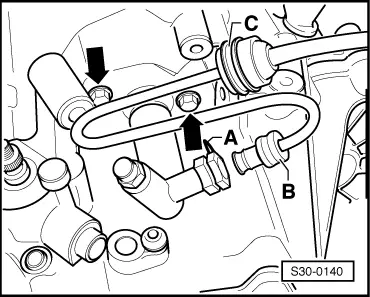

–  Install slave cylinder and tighten screws -arrows- to the given tightening torque.
–  Insert tube-hose line -B- into the slave cylinder up to the stop.
–  Press in retaining clip -A- up to the stop and make sure the tube-hose line locks into position.
–  Press tube-hose line into the support -C- at the gearbox.
–  After installing the slave cylinder bleed the clutch control → Chapter.
Assembling gearshift mechanism → Chapter.
Setting the shift mechanism → Chapter.
–  Install air filter → Engine; Rep. gr.24.
–  Install the battery tray and battery → Electrical System; Rep. gr.27.
After the battery earth strap is disconnected and connected, carry out additional operations → Electrical System; Rep. gr.27.
  S30-0140
Tightening torque
ComponentNm
Slave cylinder to gearbox → Chapter
Gearbox shift lever to gearshift shaft → Chapter
Cable support to gearbox → Chapter
