Octavia Mk2

Removing and installing engine speed senderG28
Removing and installing engine speed sender -G28-
Special tools and workshop equipment required
t  Socket insert -T10370-
t  Assembly device -T10118-
Removing
–  Remove the sound dampening system → Body Work; Rep. gr.50.
For vehicles Fabia II, Roomster, Rapid

–  Release screws -4- and attach the coolant recirculation pump 2 -V178--3- with the connected hoses to the right side.
For all vehicles

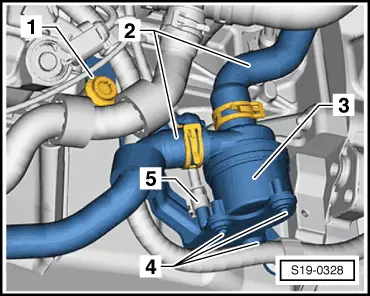

  S19-0328
–  Disconnect the plug -1- on the engine speed sender -G28- with the assembly device -T10118- and lay the electrical cable to the side.
  Note
To unlock the plug without using the assembly device -T10118-, the unlock button must be pressed at the plug using a screwdriver and at the same time unlock the unlock button with a thin wire hook.

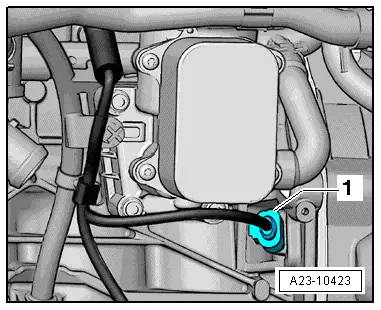

  A23-10423
–  Unscrew the fixing screw -arrow- of the engine speed sender -G28- and pull out the sender.
Install
Installation is performed in the reverse order, pay attention to the following points:
Tightening torque
  N13-10048
ComponentNm
Engine speed sender -G28- on the flange5

For vehicles Fabia II, Roomster, Rapid
–  Install coolant recirculation pump 2 -V178- → Chapter.
