Octavia Mk2

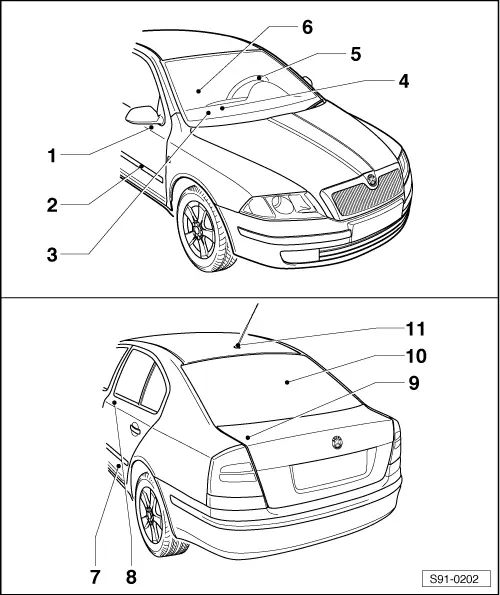

| Overview of radio system |
| The number and the design of the components depend on the vehicle equipment. |
| 1 - | Front treble speaker |
| q | installed next to the front interior door handle |
| q | removing and installing → Chapter |
| 2 - | Front bass speaker |
| q | installed in door |
| q | removing and installing → Chapter |
| 3 - | Multimedia socket MEDIA-IN (MDI) with control unit for multimedia system -J650- |
| q | in the storage compartment in the dash panel on the front passenger side |
| q | removing and installing → Chapter |
| 4 - | Radio |
| q | installed in centre console |
| q | removing and installing → Chapter |
| q | Plug connections on the radio → Chapter |
| 5 - | Multi-functional steering wheel |
| q | Description and body work → Chapter |
| 6 - | Power socket for external tone source AUX |
| q | in the centre console in the storage compartment under the armrest of the driver |
| q | removing and installing → Chapter |
| 7 - | Rear bass speaker |
| q | installed in door |
| q | removing and installing → Chapter |
| 8 - | Rear treble speaker |
| q | installed next to the rear interior door handle |
| q | removing and installing → Chapter |
| 9 - | CD changer |
| q | is located in the luggage compartment behind the removable left side trim panel |
| q | removing and installing → Chapter |
| q | Contact assignment on the CD changer → Chapter |
| 10 - | Rear window aerial |
| q | Assembly as of 01.07 - for radios with two tuners (two antenna sockets) |
| q | fitted in the rear right side window on Octavia Combi |
| q | further information in the chapter aerial systems → Chapter |
| 11 - | Roof aerial |
| q | with aerial amplifier |
| q | removing and installing → Chapter |
| q | as of MY 2009 - equipment with mobile phone pre-installation - fin shape |
