BodyInterior rear-view mirror
|
Diagram not available
Note | t
| Use this procedure when slackening the retaining plate. |
| t
| A new windscreen is supplied with the installed retaining plate. |
| Special tools and workshop equipment required |
| t
| Glue set -D 000 703 A1-. |
|
|
|
| –
| Remove retaining plate from the mirror pedestal. |
| –
| Remove old glue with wire brush from the retaining plate. |
| –
| Place 360...400 grade sandpaper on a flat surface and sand the three separating knobs on the bonding surface. |
| –
| Sanded surfaces must be clean and free from grease. |
| –

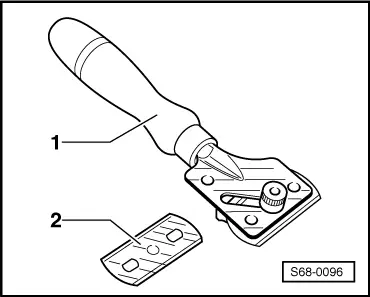

| Using the glass scraper, scrape the old glue and primer residues down to the ceramic layer on the windscreen. |
| –
| Clean the bonding surface with cleaning solution -D 009 401 04-. |
Diagram not available
WARNING | Do not damage the ceramic layer, as scratches will be permanently visible. |
|
| –
| Cut a piece of nylon net fabric to the exact size of the mirror pedestal. |
Diagram not available
Note | A protective glove (rubber) must be worn. |
| –
| Apply a generous layer of glue evenly on the retaining plate. |
| –
| Fit a piece of nylon net fabric onto the retaining plate. |
| –
| Continue applying adhesive by dabbing with the tube on the nylon. |
| Once the nylon is placed on the glue, you only have 30 seconds to press it onto the windscreen. |
| –
| Press the retaining plate steadily onto the windscreen for 15 seconds (do not force). |
| –
| Remove excess glue with a cloth. |
Diagram not available
Note | Mount the interior rear-view mirror after 15 minutes. |
|
|
|
