Summary of components of pressure line (hose) - power steering TRW

Summary of components of pressure line (hose) - power steering TRW
1 - Engine pump aggregate
q   Assignment → Electronic Catalogue of Original Parts
2 - Return-flow line
q   Assignment → Electronic Catalogue of Original Parts
q   must not be pinched off during disassembling work
q   No less than minimum bending radius of 100 mm
q   removing and installing → Chapter
3 - Line holder
4 - Power-steering gear
5 - Pressure line
q   Assignment → Electronic Catalogue of Original Parts
q   must not be pinched off during disassembling work
q   No less than minimum bending radius of 100 mm
q   Pay attention to installation position relative to subframe → Anchor
q   removing and installing → Chapter
6 - Spacer holder
q   clipped onto body
7 - Cable of power-assisted steering sensor -G250-
q   power-assisted steering gear - engine pump aggregate
q   Assignment → Electronic Catalogue of Original Parts

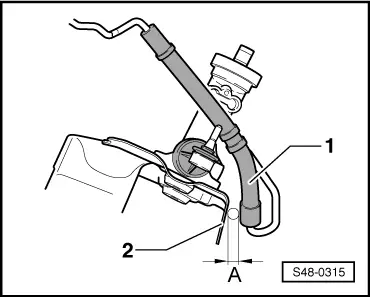

Fitting location of pressure line (flexible hose)
Maintain a clearance -A- of about 8 mm between pressure line -1- and subframe -2-.
–  Insert a suitable spacer between subframe and pressure line.
  Note
Use new hollow screw for power-assisted steering gear of TRW.
–  Tighten banjo bolt of pressure line by hand with new seals at the power-assisted steering gear.
–  Remove spacer.
–  Inspect clearance between subframe and pressure line, adjust if necessary.
–  Tighten banjo bolt fully to the specified tightening torque.
  S48-0315
Tightening torques:
Pressure line to the power-assisted steering gear TRW
t  Use new hollow screw!
35 Nm
